Installation Case 76 : Full Steel Perfect Steel Master Filtron Water Filtration System

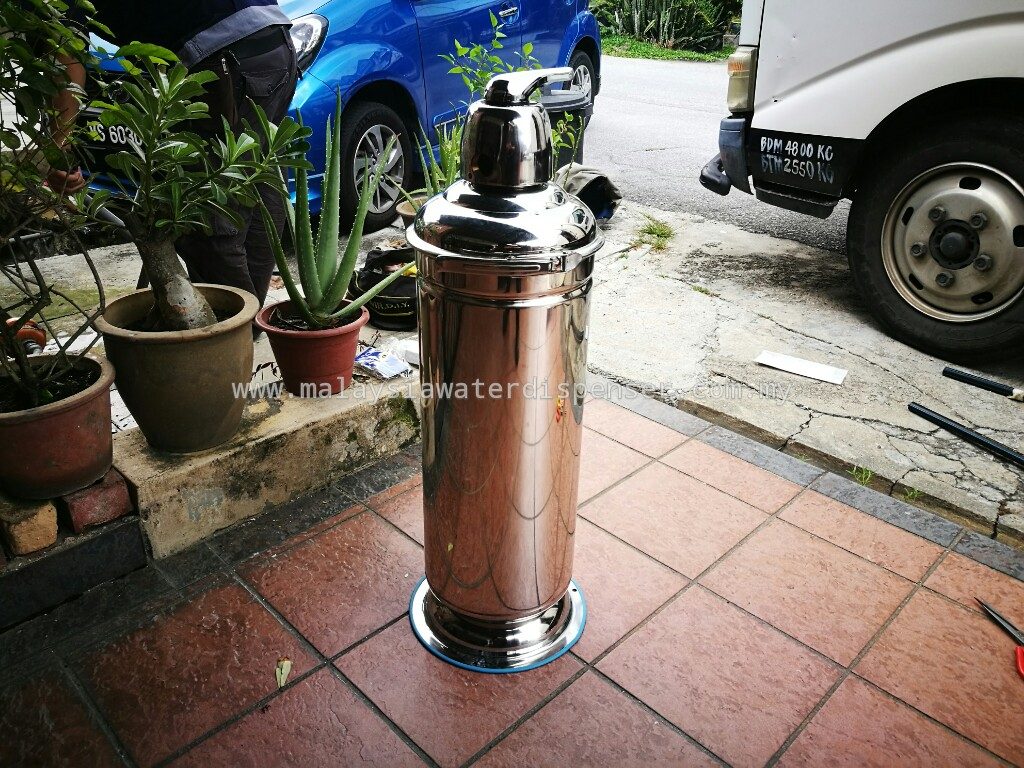

Today preparing to install this outdoor water filtration sysyem. This brand is Perfect Steel and using Filtron filter technology.
IMG 20180604 141424 water filter

For now, i have to remove the old one.
IMG 20180604 140618 water filter

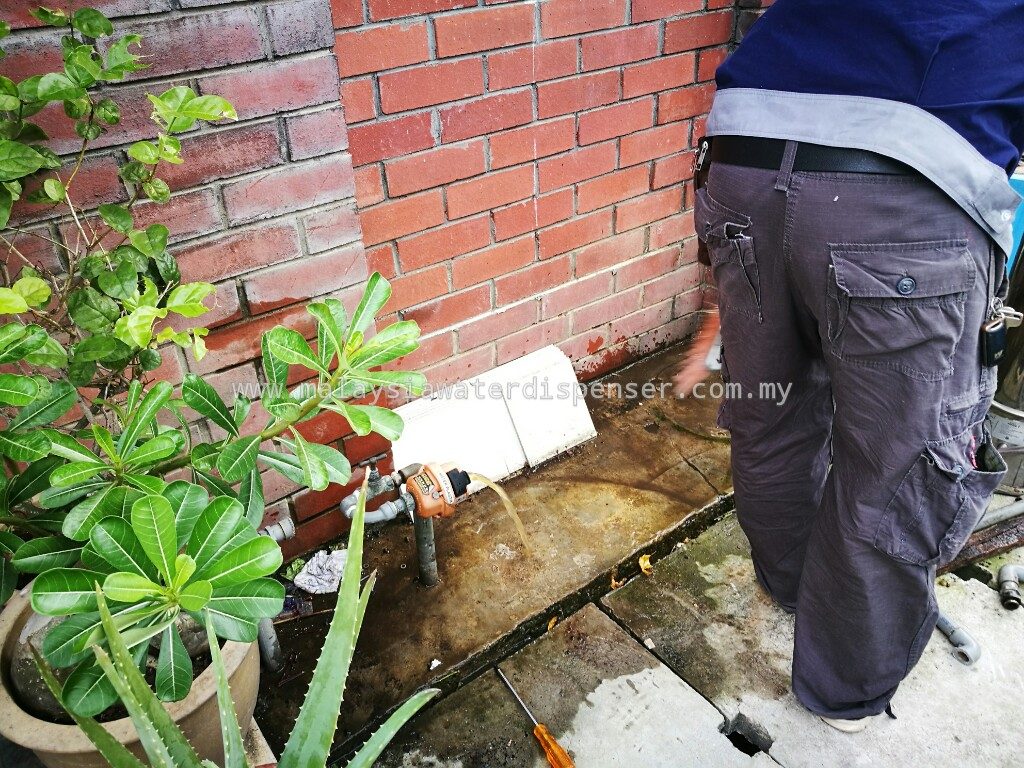

Remove everything even the pvc pipings.
IMG 20180604 141547 water filter

Preparing to connect pipings.
IMG 20180604 142547 water filter

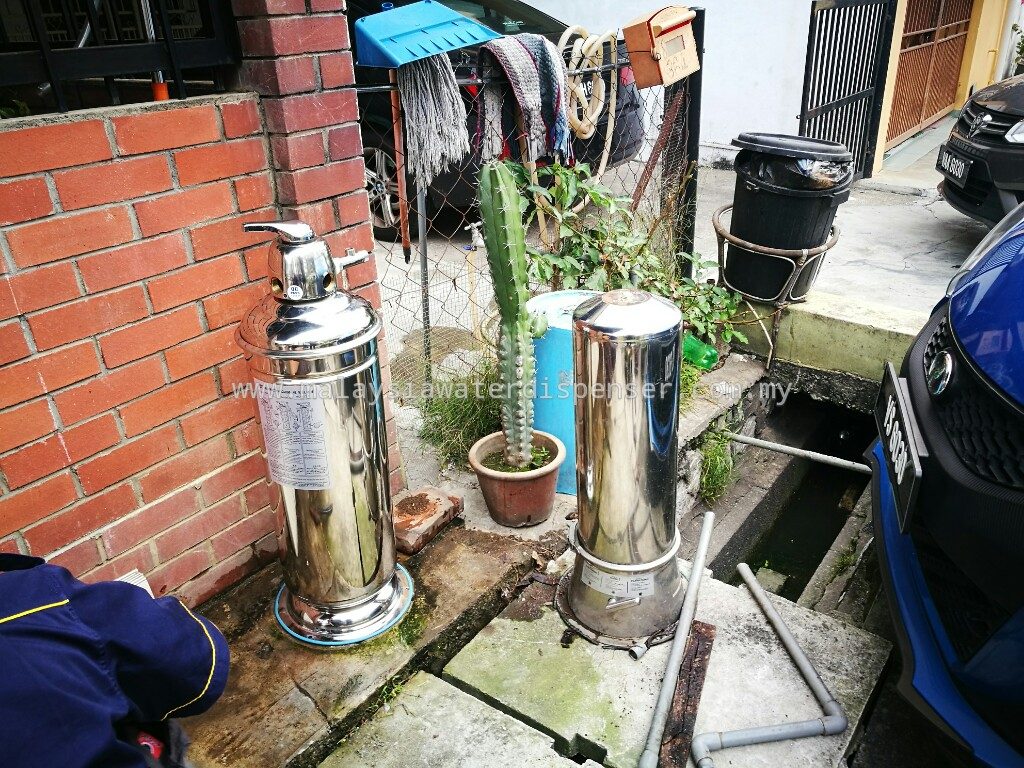

This is the back wash valve, you must doing back wash every week to keep the filtron filter clean. Recommend every 6 months to open it and cleaning the filtron filter, because back wash function is not 100% keep clean.
IMG 20180604 141808 water filter

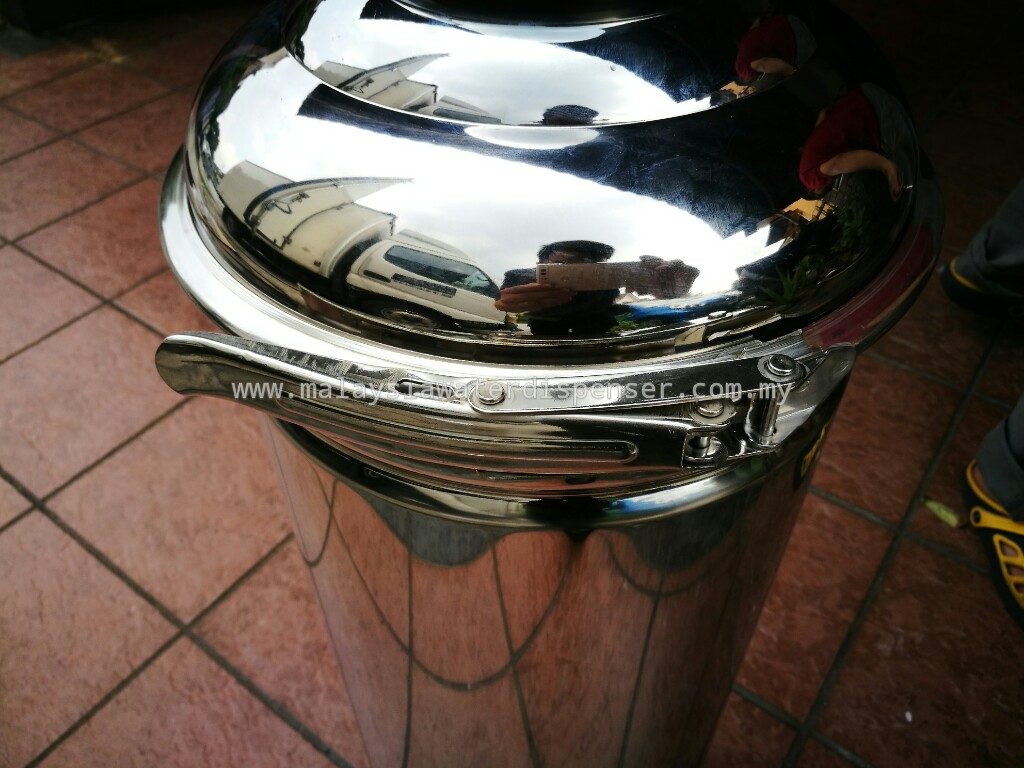

This is the lock, when you open it, you can take out filtron filter to clean or change.
IMG 20180604 141800 water filter

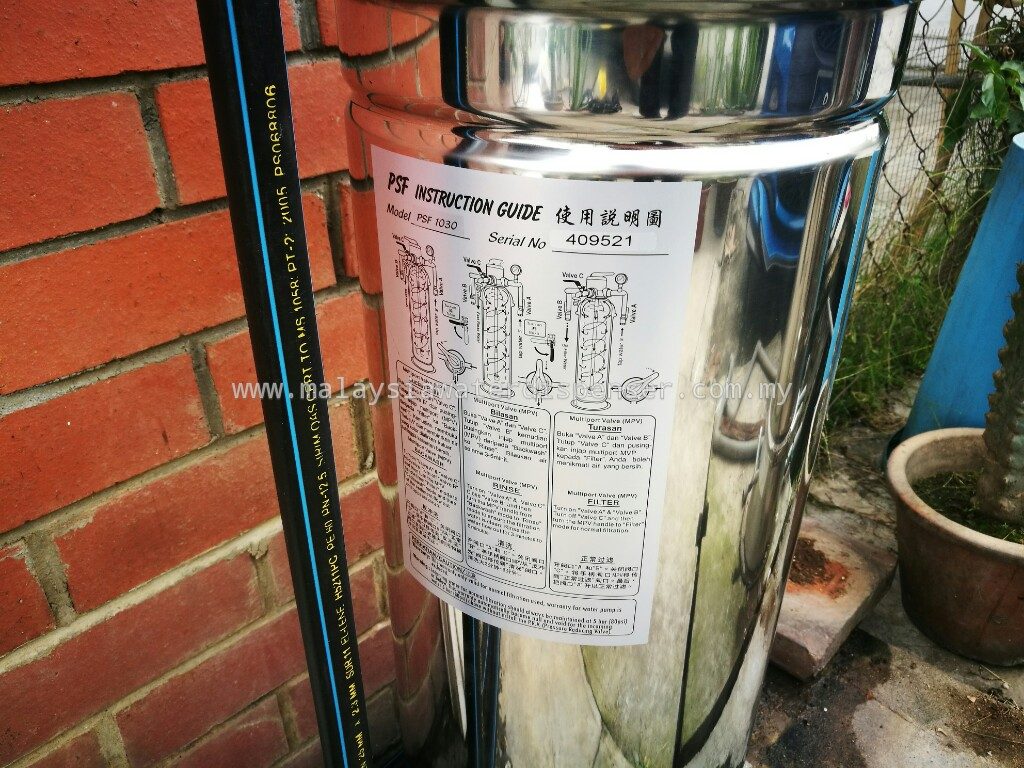

Back wash instructions, this instructions showing you how to back wash or bypass water when the water pressure coming slow.
IMG 20180604 151540 water filter

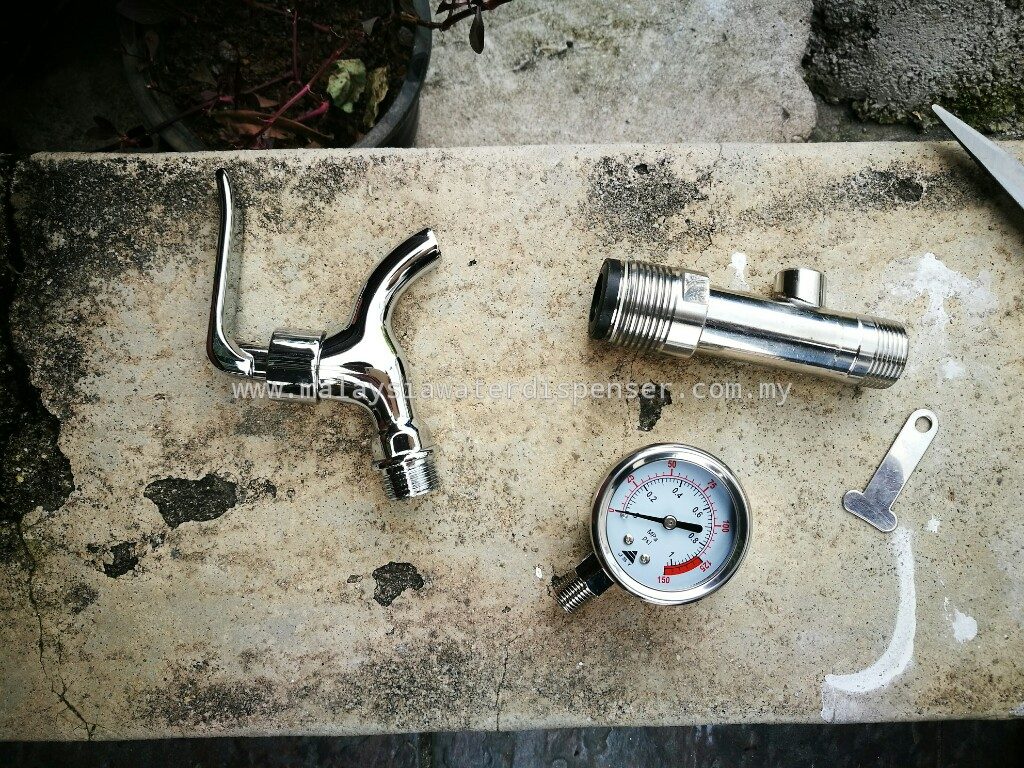

Connection parts including back wash valve, steel inlet connection and pressure meter.
IMG 20180604 170845 water filter

Ok, we are using poly piping, this is better more than pvc pipings.
IMG 20180604 151533 water filter

Pipings connect done.
IMG 20180604 151530 water filter

Back wash valve also done.
IMG 20180604 151536 water filter

Installation completed.
IMG 20180604 151841 water filter
